05. CSS Box Model 👩‍🎓👨‍🎓

Folder Structure

05-Stu-css-box-model
├── assets
│      ├──css
│      │   └── style.css
│      └── images
│          ├── image-1.png
│          ├── image-2.png
│          ├── image-3.png
│          └── image-4.png
└── index.html

Box Model

Work with a partner to implement the following user story:

As a developer, I want to use the CSS box model properties to position four boxes inside a frame.

Instructions

Correct the code so that each box has a defined:
- padding property
- margin property
- border property

Your solution should match the following image:

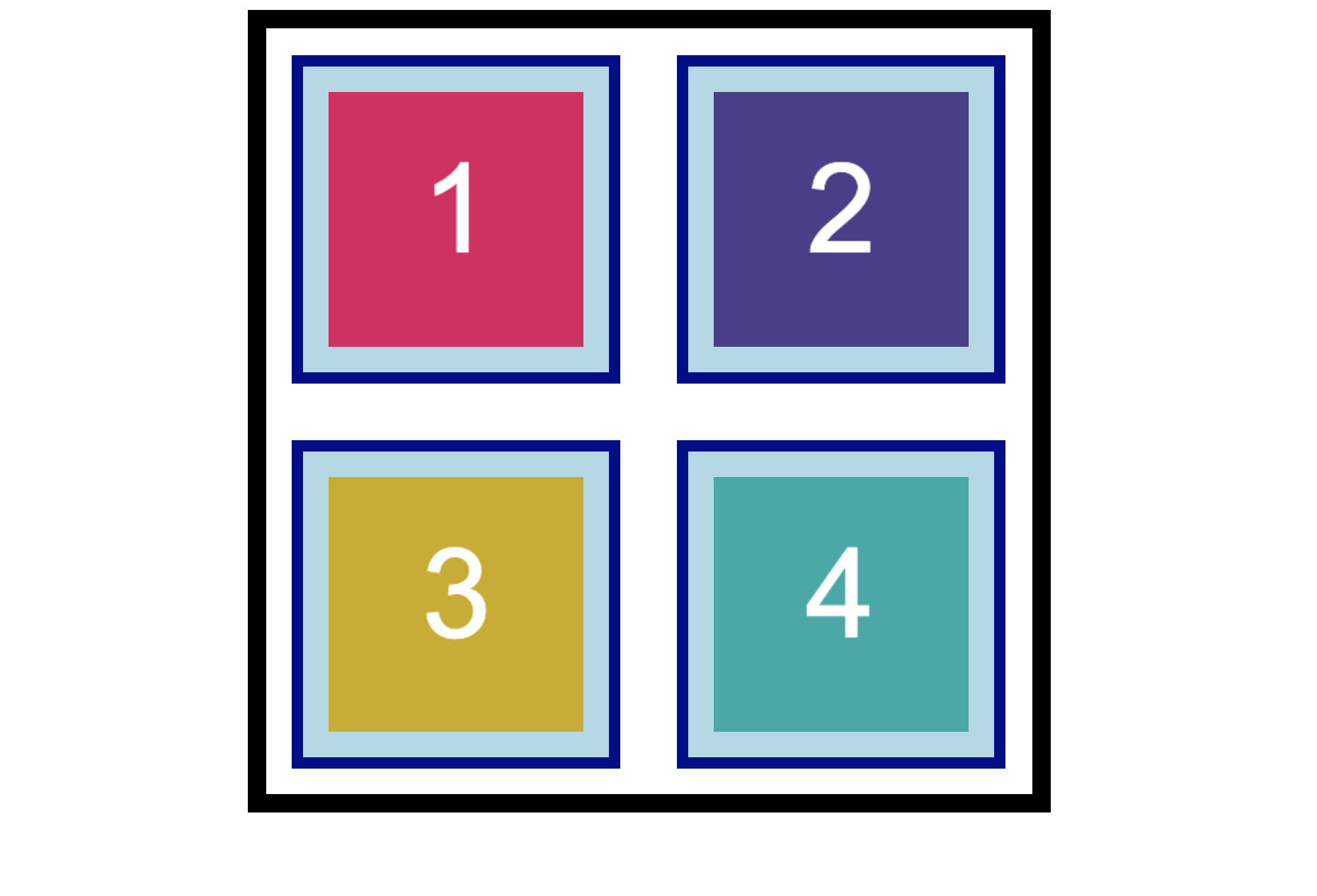

Four numbered, differently colored boxes appear evenly spaced inside a larger box.

📝 Notes

Refer to the documentation:

MDN Web Docs on CSS basic box model

MDN Web Docs on padding

MDN Web Docs on margin

MDN Web Docs on border

💡 Hints

How can we use the margin property to define space between elements?

🏆 Bonus

If you have completed this activity, work through the following challenge with your partner to further your knowledge:

What is the CSS float property?

Use Google or another search engine to research this.

✅ Solutions

Solutions Click Here

style.css

section {
  width: 600px;
  height: 600px;
  text-align: center;
  border: 15px solid black;
}

img {
  width: 200px;
  height: 200px;
  background-color: lightblue;
  /* Margin property */
  margin: 20px;
  /* Padding property */
  padding: 20px;
  /* Border property */
  border: 9px solid darkblue;
}

index.html

<!DOCTYPE html>
<html lang="en-GB">

  <head>
    <meta charset="UTF-8">
    <title>HTML Box Model</title>
    <link rel="stylesheet" type="text/css" href="./assets/css/style.css">
  </head>

  <body>
    <section>
      <img src="./assets/images/image-1.png" alt="box with number 1"/>
      <img src="./assets/images/image-2.png" alt="box with number 2"/>
      <img src="./assets/images/image-3.png" alt="box with number 3"/>
      <img src="./assets/images/image-4.png" alt="box with number 4"/>
    </section>
  </body>

</html>
