08. Dom Traversal 👩‍🎓👨‍🎓

📖 Implement Tic-Tac-Toe Automation

Work with a partner to implement the following user story:

As a game developer, I want to programmatically change the board style.
As a game developer, I want to programmatically add the winning move.

Acceptance Criteria

It’s done when the board’s tiles are automatically styled on page load.
It’s done when the X player is blocked from winning.
It’s done when the O player has won.

📝 Notes

Refer to the following documentation:

jQuery Docs on Traversing

jQuery Docs on Markup Changes

Assets

The following image demonstrates the web application’s appearance and functionality:

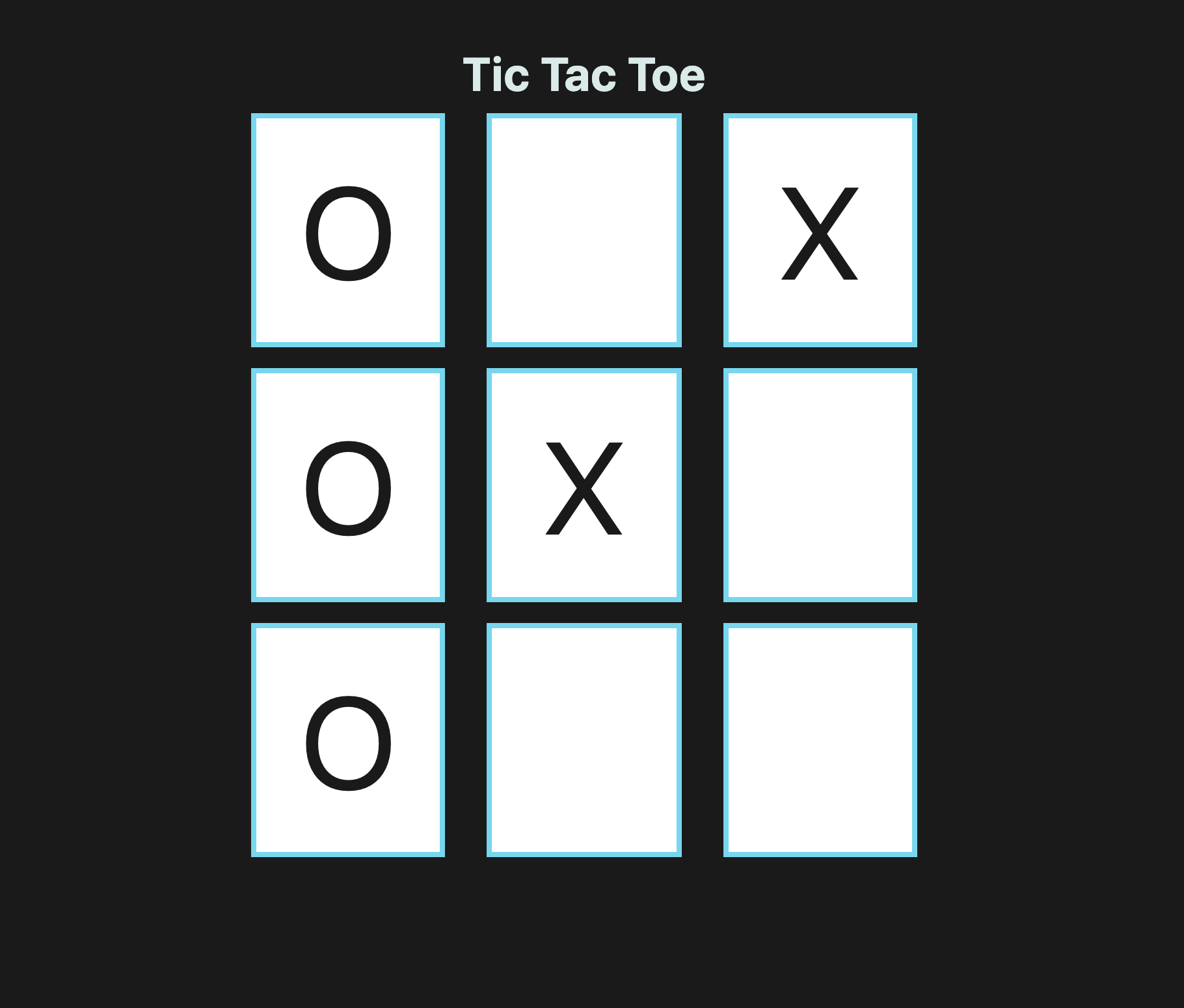

A Tic-Tac-Toe board shows that the O player has won the game.

💡 Hint

The starting point for all the the traversals in this activity must begin at the <main id="root">, which has been assigned for you as rootEl.

🏆 Bonus

If you have completed the activity and want to further your knowledge, work through the following challenge with your partner:

What are some alternative methods to traverse up and down the DOM tree? Use Google or another search engine to answer this question.

✅ Solutions

Solutions Click Here

index.html

<!DOCTYPE html>
<html lang="en-gb">

<head>
  <meta charset="UTF-8" />
  <title>jQuery Tic Tac Toe</title>
  <link rel="stylesheet" type="text/css" href="./assets/css/jass.css">
  <link rel="stylesheet" type="text/css" href="./assets/css/style.css">
</head>

<body class="bg-dark text-light">
  <main id="root">
    <h1 class="text-center pb-5">Tic Tac Toe</h1>

    <!-- row one -->
    <ul>
      <li class="item-a1">O</li>
      <li class="item-b1"></li>
      <li class="item-c1">X</li>
    </ul>

    <!-- row two -->
    <ul>
      <li class="item-a2">O</li>
      <li class="item-b2">X</li>
      <li class="item-c2"></li>
    </ul>

    <!-- row three -->
    <ul>
      <li class="item-a3"></li>
      <li class="item-b3"></li>
      <li class="item-c3"></li>
    </ul>
  </main>

  <!-- Added link to the jQuery library -->
  <script src="https://code.jquery.com/jquery-3.5.1.min.js"></script>
  <script type="text/javascript" src="./assets/js/script.js"></script>
</body>

</html>

index.js

// Ensure the document is rendered when manipulating DOM elements
// Assemble: Create/select DOM elements
var rootEl = $('#root');

// Starting from the root element, `<main id="root">`, select all the boxes and change the background color to white.
rootEl.children('ul').children().css('background-color', 'white');

// Select the last `<ul>` or the third row.
// Long traverals can be segmented to provide better readability.
var rowThree = rootEl.children('ul').eq(2);

// Select the children of the `<ul>`, then select the first box and add the 'O'.
rowThree.children().eq(0).text('O');
